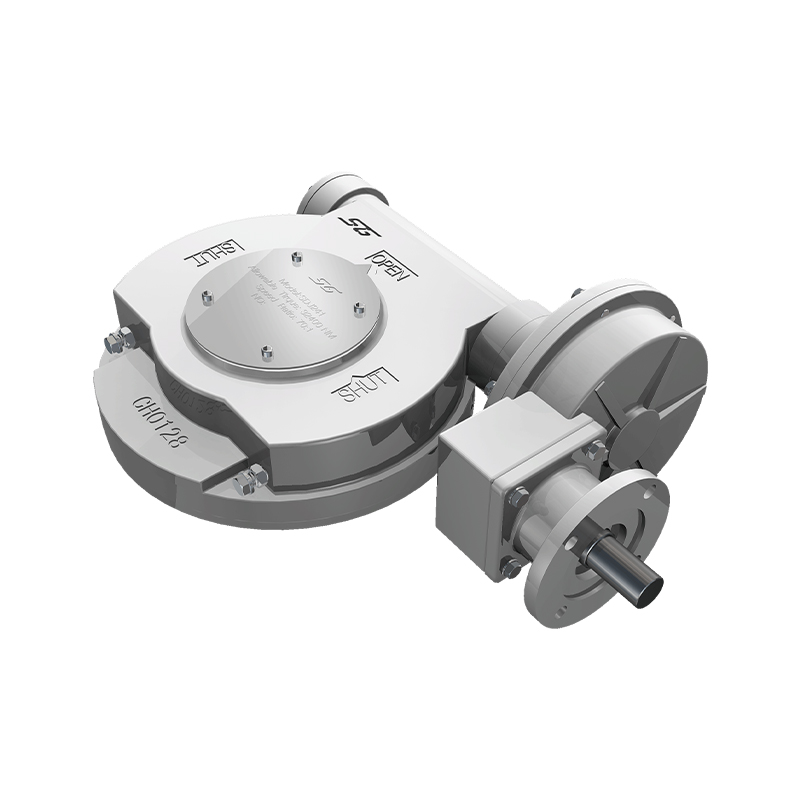

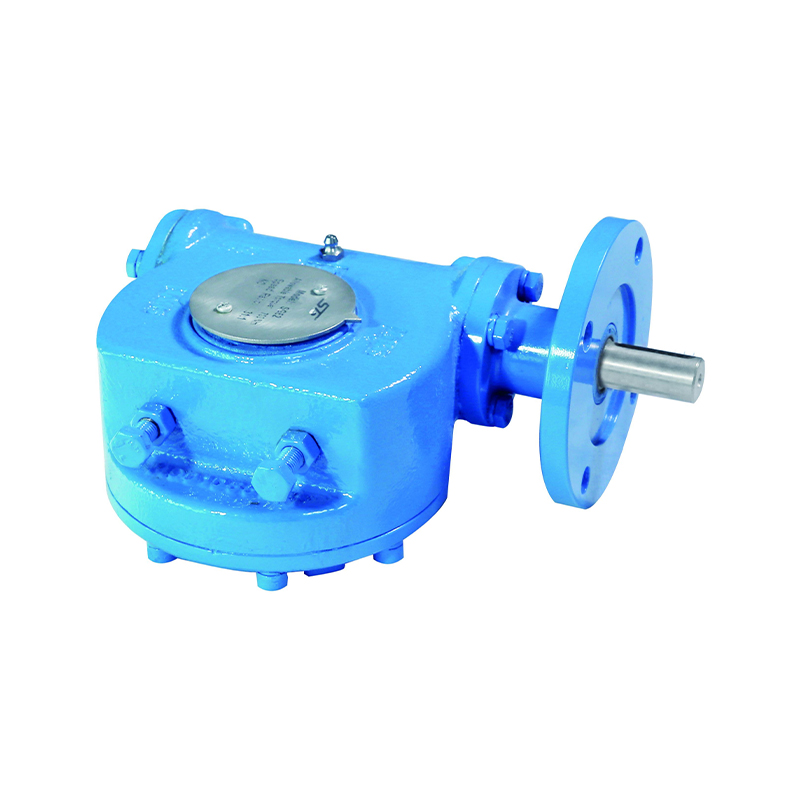

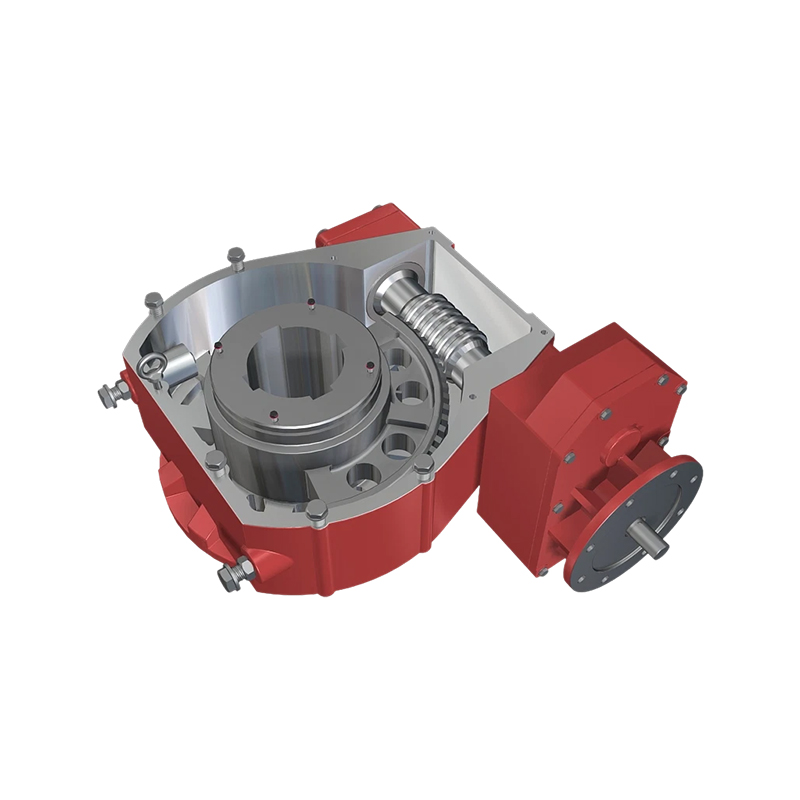

SG Part-Turn Gearbox With Electric Actuator

SG Part-Turn Gearbox With Electric Actuator

SG62/SG83/SG120/SG123/SG123A/SG143/SG143A/SG200/SG200A/SG237/SG237A/SG242A/SG242A
SG series is a 90° rotating gear operator suitable for ball valves, butterfly valves, plug valves with manual, electric or hydraulic actuators.
Speed ratio: 31:1 ~ 190:1
Output torque: 650nm ~ 50000Nm
Gearbox material: ductile iron
Worm gear material: QT600-3
Protection level: IP67 ~ IP68
Input and output connection flanges are designed according to ISO 5210 and ISO 5211 standards.

Consult

Features
Technical Indicators
Overall Dimension

Installation and operation instructions

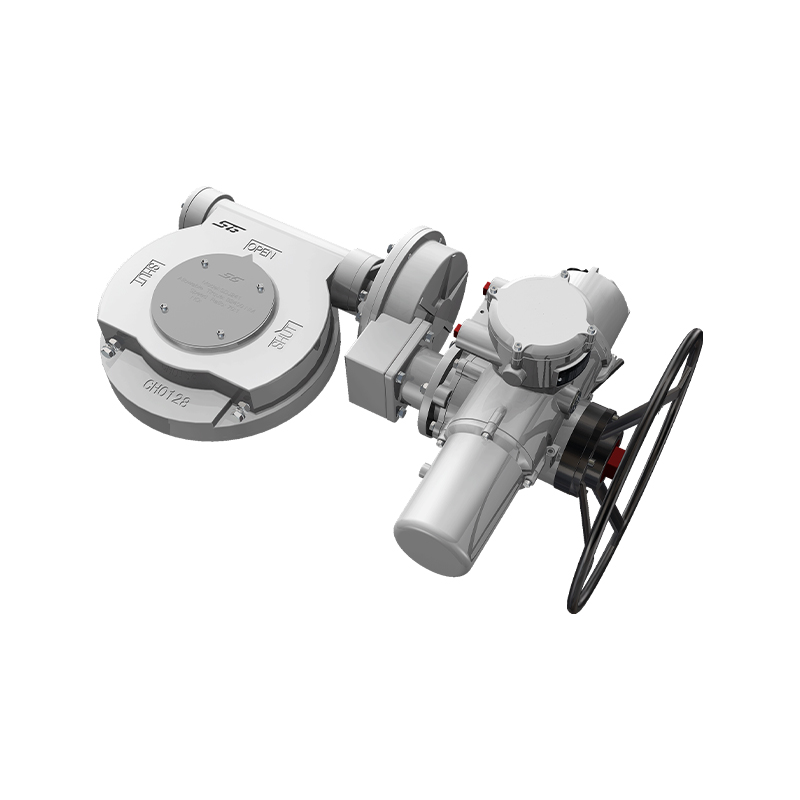

The gearbox input end flange is connected to the electric actuator, the input shaft is connected to the electric actuator hole, and the flange bolts are installed and tightened.
Connect the lower flange of the gear operating mechanism to the upper flange of the valve, and slide the valve shaft into the hole on the worm gear. Tighten the flange bolts. Turn the handwheel clockwise to close the valve, and turn the handwheel counterclockwise to open the valve. A position indicator and position mark are installed on the top of the gear operating mechanism, and the position of the switch can be directly observed through the position indicator. The gear operating mechanism is also equipped with a mechanical limit screw, which can be adjusted and limited at the extreme position of the switch.
Product Features
Ductile iron housing
IP67 protection
Ductile iron worm gear
Nitrile rubber sealing material
Applicable to working conditions of -20℃~120℃
Customization
IP68 protection
Aluminum bronze worm gear
Stainless steel input shaft
Applicable to high temperatures up to 320℃
Applicable to low temperatures below -40℃

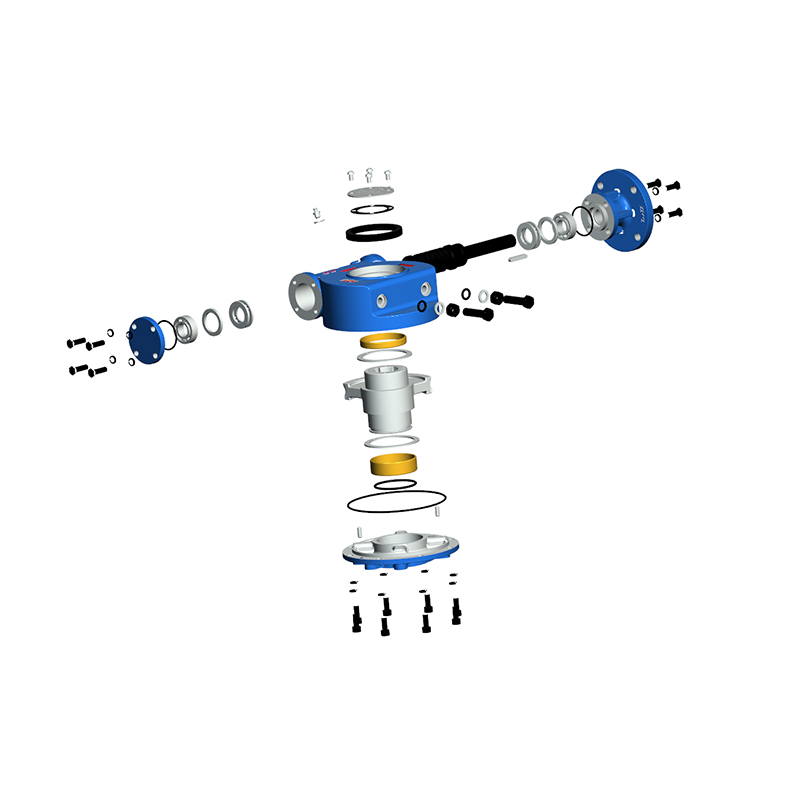

Main parts list Parts Material Large cover Ductile iron Casing Ductile iron Worm Carbon steel Turbine/Quadrant Ductile iron/QT600-3 End cover Ductile iron Signage SUS201 Main Technical Parameter Model Speed Ratio Electric actuator flange Rated input torque(Nm) Rated output torque(Nm) Maximum output torque t(Nm) ISO5210 N.M N.M N.M SG62 31:1 F10 75 650 700 SG83 45:1 F10 100 1350 1400 SG120 70:1 F10 120 2700 2800 SG123 70:1 F10 100-120 3000 3000 SG123A 136:1 F10/F12 120 5700 6000 SG143 70:1 F10 160 4000 SG143A 136:1 F10 250 7000 8000 SG200 70:1 F16 400 9000 12000 SG200A 140:1 F16 400 16000 20000 SG237 70:1 F16 600 12000 14000 SG237A 140:1 F16 1000 40000 43000 SG242A 190:1 F16 600 32500 34000 SG242A 190:1 F25 1000 50000 50000

Parts	Material
Large cover	Ductile iron
Casing	Ductile iron
Worm	Carbon steel
Turbine/Quadrant	Ductile iron/QT600-3
End cover	Ductile iron
Signage	SUS201

Model	Speed Ratio	Electric actuator flange	Rated input torque(Nm)	Rated output torque(Nm)	Maximum output torque t(Nm)
Model	Speed Ratio	ISO5210	N.M	N.M	N.M
SG62	31:1	F10	75	650	700
SG83	45:1	F10	100	1350	1400
SG120	70:1	F10	120	2700	2800
SG123	70:1	F10	100-120	3000	3000
SG123A	136:1	F10/F12	120	5700	6000
SG143	70:1	F10	160	4000
SG143A	136:1	F10	250	7000	8000
SG200	70:1	F16	400	9000	12000
SG200A	140:1	F16	400	16000	20000
SG237	70:1	F16	600	12000	14000
SG237A	140:1	F16	1000	40000	43000
SG242A	190:1	F16	600	32500	34000
SG242A	190:1	F25	1000	50000	50000
