Customized Gearbox

SLA38/SLA54/SLA80/SLA86/SLA270
In industrial manufacturing, every application has its own unique requirements. We know that there are always working conditions that are not suitable for standard gears. Therefore, we provide you with customizable gearbox solutions, from design to production, every step is tailored for you.
Whether it is special size, high torque load, extreme environment adaptability, or unique installation requirements, our engineering team can design efficient, reliable and durable gearboxes according to your specific working conditions. We use advanced manufacturing processes and high-quality materials to ensure that each gearbox can perform excellently in your equipment.

Consult

Features
Technical Indicators

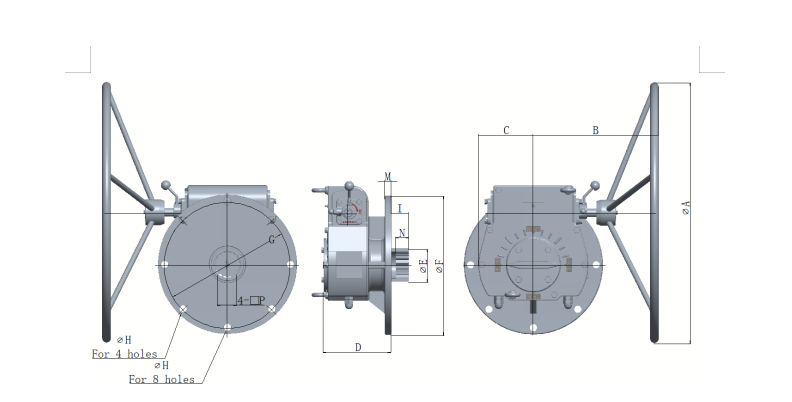

Overall Dimension


Model
Ratio
Rating input(Nm)
Rating output(Nm)
Efficiency
Hand-wheel(mm)
SLA38
38:1
20
150
0.23
150
30
250
200
65
550
300
SLA54
54:1
78
1000
0.24
350
SLA80
80:1
115
2100
0.24
600
SLA86
86:1
165
3400
0.24
750
SLA270
264:1
120
6800
0.22
500

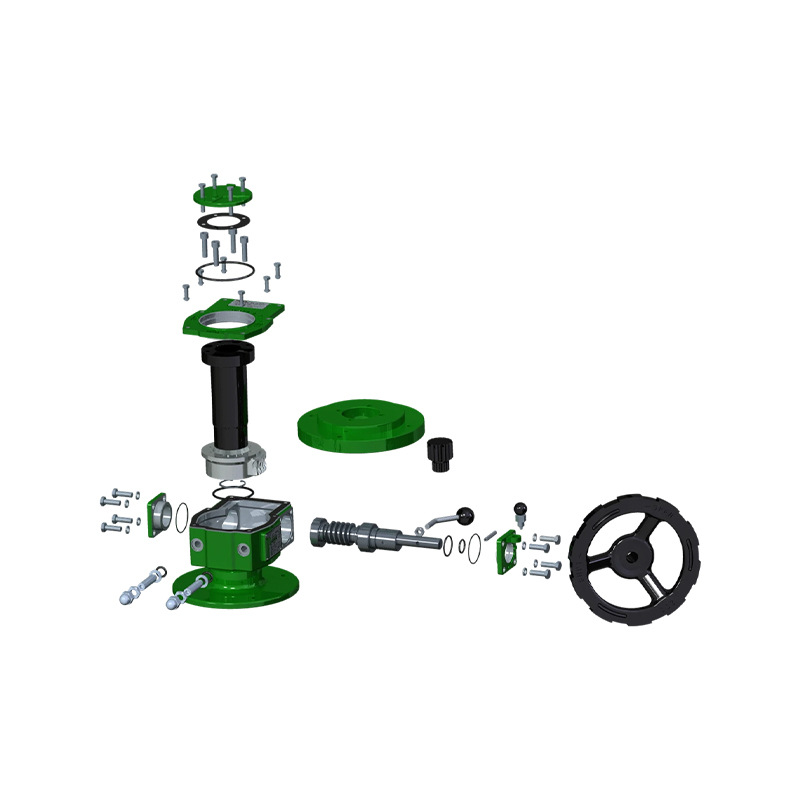

Part name
Material
Handwheel
Q235A/(GB/T700)
Housing
QT450-10/(GB/T 1348)
Cover
QT450-10/(GB/T 1348)
Worm gear
QT500-7/(GB/T 1348)
Worm shaft
45/(GB/T699)
Indieator
HT250/(GB/T 9439)

Model	Ratio	Rating input(Nm)	Rating output(Nm)	Efficiency	Hand-wheel(mm)
SLA38	38:1	20	150	0.23	150
		30	250		200
		65	550		300
SLA54	54:1	78	1000	0.24	350
SLA80	80:1	115	2100	0.24	600
SLA86	86:1	165	3400	0.24	750
SLA270	264:1	120	6800	0.22	500

Part name	Material
Handwheel	Q235A/(GB/T700)
Housing	QT450-10/(GB/T 1348)
Cover	QT450-10/(GB/T 1348)
Worm gear	QT500-7/(GB/T 1348)
Worm shaft	45/(GB/T699)
Indieator	HT250/(GB/T 9439)
